SunGuard® High Performance
SunGuard® High Performance Royal Blue 40 - Gujarat Guardian Glass
Give your project the royal treatment

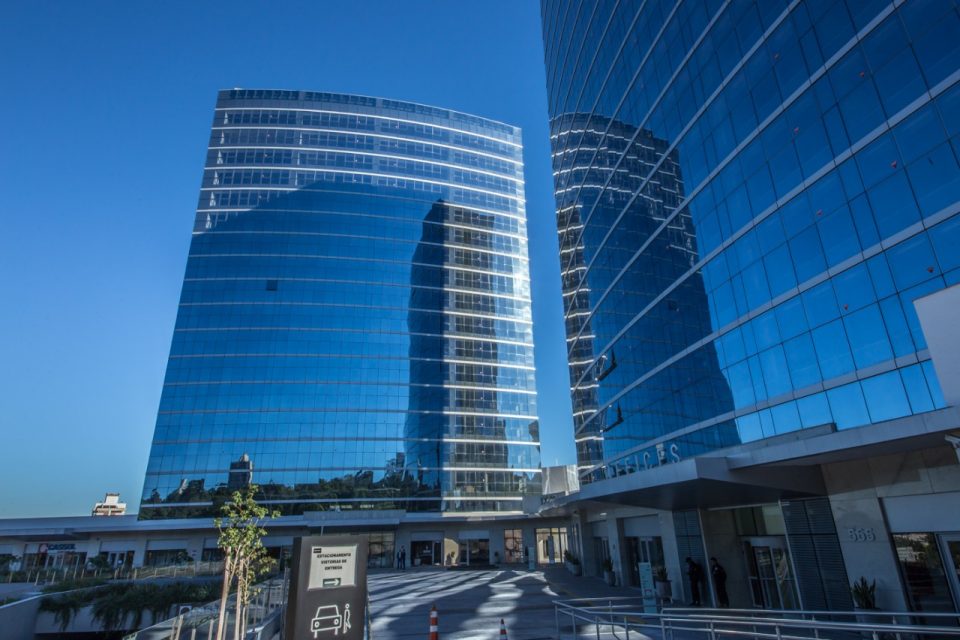

SunGuard® HP Royal Blue 40 lets architects and specifiers create buildings with excellent solar control that delivers dramatic energy savings to meet or exceed local and regional building energy codes. It also offers excellent reflectivity and a regal blue appearance, along with optical clarity, uniformity and excellent selectivity. Usher in low-E performance without the cost of blue glass. SunGuard HP Royal Blue 40 is also durable enough to be tempered, heat-strengthened, curved, laminated or screen-printed. Architects have trusted it in projects across the globe.

Product information
  • Gray 3-12mm
  • Green 3-12mm
  • Clear Float 3-12 mm
  • Windows
  • Skylights
  • Facades
  • Curtain walls
  • Doors
Manufacturing Options
  • Heat Strengthened
  • Heat Soaked
  • Annealed
  • Tempered
  • Laminated
Recommended Coating Positions
  • Surface 2
Maximum Size
  • <3210x6000mm
Edge Deletion
  • No
Glass Type
  • Single Silver Coated Glass
Glass Functions
  • Solar control
  • Must be used in an Insulating Glass Units
  • Blue

Visual Appearance

Use the Glass Visualizer to get an introductory understanding of how glass will appear in use. Use the Glass Analytics tools to explore even more options for color and performance.

Choose an option
There is only one substrate available for this product


This tool intended to represent the reflected/transmitted color ; however, glass color cannot be accurately portrayed online. Please see color disclaimer at bottom of the page.

Original Image
Modified Image

You need more information and additional mockups? Consult our Glass Visualizer Tool:

Calculate Performance Values & Generate BIM Files
Generate product performance data for custom glass make-ups and create detailed BIM object files for your project

Performance data

The glazing make-up suggestions below are pre-defined to provide examples of commonly used combinations of products. There are many other glass combinations available at Glass Analytics.

Double Glazed


GLASS: Clear Float (Middle East) Glass, 5mm (2-SunGuard® HP Royal Blue 40 (Middle East))

GAP: 10% Air, 90% Argon 11.76mm

GLASS: Clear Float (Middle East) Glass, 5mm (3-SunGuard® HP Neutral 60 (Middle East))

Calculated Values are in accordance with NFRC2010

Performance Values

Visible Light
Transmittance (τv)
26 %
Reflectance outside (ρv)
25 %
Reflectance inside (ρv)
27 %
General Color Rendering Index (CRI)
Transmittance UV (τuv)
11 %
Solar Energy
Solar transmittance (τe)
14 %
Reflectance outside (ρe)
31 %
Reflectance inside (ρe)
36 %
Solar absorptance (αe)
55 %
Solar Heat Gain Coefficient (SHGC)
Shading Coefficient (sc)
Thermal properties
Winter night U-Value
1.384 W/m²·K
Summer day U-value
1.312 W/m²·K
Light to Solar Gain
Light to Solar Gain (LSG)
Performance Calculations
With the performance calculator, you can quickly calculate the performance data that matches your own glazing make-up
  • 1 Pane
  • 2 calculation format
  • 3 Results
  • 1 Outer Pane
  • 2 Inner Pane
  • 3 cavity
  • 4 calculation format
  • 5 Results
  • 1 Outer Pane
  • 2 Middle Pane
  • 3 Inner Pane
  • 4 cavity
  • 5 calculation format
  • 6 Results

Choose a glazing

  • Monolithic

    Not available for this product

  • Double

    Not available for this product

  • Triple

    Not available for this product


Monolithic Laminated

Double Glazed

Double Outer pane Laminated

Double Inner pane Laminated

Double Inner and Outer pane Laminated

Triple Glazed

Triple Outer pane Laminated

Triple Inner pane Laminated

Triple Inner and Outer pane Laminated

Outer Pane

There is only one substrate available for this product.
There is only one Interlayer available for this product.
There is only one substrate available for this product.
There is only one thickness available, to calculate other thickness' please go to Glass Analytics
Glass thickness are symetrical and represent the glass to be laminated
There is only one coating available
There is only one coating available
There is only one coating available
There is only one coating available

Choose your calculation format

There is only one calculation standard available
There is only one unit available for this calculation standard


Calculated Values are in accordance with
